OrientBaseGraph (OrientDB 2.2.37 API)

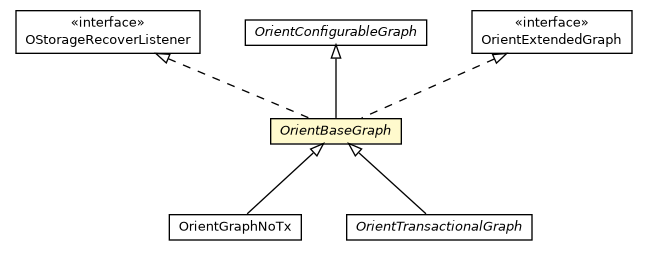

java.lang.Object
- com.tinkerpop.blueprints.impls.orient.OrientConfigurableGraph
- - com.tinkerpop.blueprints.impls.orient.OrientBaseGraph

All Implemented Interfaces:

OStorageRecoverListener, com.tinkerpop.blueprints.Graph, OrientExtendedGraph, com.tinkerpop.blueprints.IndexableGraph, com.tinkerpop.blueprints.KeyIndexableGraph, com.tinkerpop.blueprints.MetaGraph<ODatabaseDocumentTx>

Direct Known Subclasses:

OrientGraphNoTx, OrientTransactionalGraph
```
public abstract class OrientBaseGraph
extends OrientConfigurableGraph
implements OrientExtendedGraph, OStorageRecoverListener
```
A Blueprints implementation of the graph database OrientDB (http://www.orientechnologies.com)

Author:

Luca Garulli (http://www.orientechnologies.com)

Nested Class Summary
- Nested classes/interfaces inherited from class com.tinkerpop.blueprints.impls.orient.OrientConfigurableGraph
  OrientConfigurableGraph.Settings, OrientConfigurableGraph.THREAD_MODE

Field Summary

Fields
Modifier and Type	Field and Description
`static String`	`ADMIN`
`static String`	`CLASS_PREFIX`
`static String`	`CLUSTER_PREFIX`
`static String`	`CONNECTION_IN`
`static String`	`CONNECTION_OUT`
`protected ODatabaseDocumentTx`	`database`

Constructor Summary

Constructors
Constructor and Description
`OrientBaseGraph(org.apache.commons.configuration.Configuration configuration)` Builds a OrientGraph instance passing a configuration.
`OrientBaseGraph(ODatabaseDocumentTx iDatabase, String iUserName, String iUserPassword, OrientConfigurableGraph.Settings iConfiguration)` Constructs a new object using an existent database instance.
`OrientBaseGraph(OPartitionedDatabasePool pool)`
`OrientBaseGraph(OPartitionedDatabasePool pool, OrientConfigurableGraph.Settings iConfiguration)`
`OrientBaseGraph(String url)`
`OrientBaseGraph(String url, String username, String password)`

Method Summary

All Methods Static Methods Instance Methods Concrete Methods Deprecated Methods
Modifier and Type	Method and Description
`OrientEdge`	`addEdge(Object id, com.tinkerpop.blueprints.Vertex outVertex, com.tinkerpop.blueprints.Vertex inVertex, String label)` Creates an edge between a source Vertex and a destination Vertex setting label as Edge's label.
`OrientVertex`	`addTemporaryVertex(String iClassName, Object... prop)` (Blueprints Extension) Creates a temporary vertex setting the initial field values.
`OrientVertex`	`addVertex(Object id)` Creates a new unconnected vertex with no fields in the Graph.
`OrientVertex`	`addVertex(Object id, Object... prop)` (Blueprints Extension) Creates a new unconnected vertex in the Graph setting the initial field values.
`OrientVertex`	`addVertex(String iClassName, String iClusterName)` (Blueprints Extension) Creates a new unconnected vertex with no fields of specific class in a cluster in the Graph.
`OrientElement`	`attach(OrientElement iElement)` Attaches a previously detached Graph Element to the current Graph.
`protected void`	`autoStartTransaction()`
`void`	`begin()` begins current transaction (if the graph is transactional)
`static void`	`clearInitStack()` Internal use only.
`OCommandRequest`	`command(OCommandRequest iCommand)` Executes commands against the graph.
`void`	`commit()` Commits the current active transaction.
`OrientBaseGraph`	`configure(OrientConfigurableGraph.Settings iSetting)` (Blueprints Extension) Configure the Graph instance.
`protected Object`	`convertKey(OIndex<?> idx, Object iValue)`
`protected Object[]`	`convertKeys(OIndex<?> idx, Object[] iValue)`
`long`	`countEdges()` Counts the edges in graph.
`long`	`countEdges(String iClassName)` Counts the edges in graph of a particular class.
`long`	`countVertices()` Counts the vertices in graph.
`long`	`countVertices(String iClassName)` Counts the vertices in graph of a particular class.
`OrientEdgeType`	`createEdgeType(String iClassName)` Creates a new Edge persistent class.
`OrientEdgeType`	`createEdgeType(String iClassName, int clusters)` Creates a new Edge persistent class.
`OrientEdgeType`	`createEdgeType(String iClassName, OClass iSuperClass)` Creates a new Edge persistent class specifying the super class.
`OrientEdgeType`	`createEdgeType(String iClassName, OClass iSuperClass, int clusters)` Creates a new Edge persistent class specifying the super class.
`OrientEdgeType`	`createEdgeType(String iClassName, String iSuperClassName)` Creates a new Edge persistent class specifying the super class.
`OrientEdgeType`	`createEdgeType(String iClassName, String iSuperClassName, int clusters)` Creates a new Edge persistent class specifying the super class.
`<T extends com.tinkerpop.blueprints.Element> com.tinkerpop.blueprints.Index<T>`	`createIndex(String indexName, Class<T> indexClass, com.tinkerpop.blueprints.Parameter... indexParameters)`
`<T extends com.tinkerpop.blueprints.Element> void`	`createKeyIndex(String key, Class<T> elementClass, com.tinkerpop.blueprints.Parameter... indexParameters)` Creates an automatic indexing structure for indexing provided key for element class.
`OrientVertexType`	`createVertexType(String iClassName)` Creates a new Vertex persistent class.
`OrientVertexType`	`createVertexType(String iClassName, int clusters)` Creates a new Vertex persistent class.
`OrientVertexType`	`createVertexType(String iClassName, OClass iSuperClass)` Creates a new Vertex persistent class specifying the super class.
`OrientVertexType`	`createVertexType(String iClassName, OClass iSuperClass, int clusters)` Creates a new Vertex persistent class specifying the super class.
`OrientVertexType`	`createVertexType(String iClassName, String iSuperClassName)` Creates a new Vertex persistent class specifying the super class.
`OrientVertexType`	`createVertexType(String iClassName, String iSuperClassName, int clusters)` Creates a new Vertex persistent class specifying the super class.
`void`	`declareIntent(OIntent iIntent)` Declare an intent.
`static String`	`decodeClassName(String iClassName)` (Internal)
`protected static void`	`deleteEdgeIfAny(OIdentifiable iRecord, boolean forceReload)` (Internal only)
`OrientElement`	`detach(OrientElement iElement)` Detaches a Graph Element to be used offline.
`void`	`drop()` (Blueprints Extension) Drops the database
`void`	`dropEdgeType(String iTypeName)` Drops an edge class.
`void`	`dropIndex(String indexName)` Drops an index by name.
`<T extends com.tinkerpop.blueprints.Element> void`	`dropKeyIndex(String key, Class<T> elementClass)` Drops the index against a field name.
`void`	`dropVertexType(String iTypeName)` Drop a vertex class.
`static String`	`encodeClassName(String iClassName)` (Internal)
`static void`	`encodeClassNames(String... iLabels)` (Internal)
`<RET> RET`	`executeOutsideTx(OCallable<RET,OrientBaseGraph> iCallable, String... iOperationStrings)`
`static OrientBaseGraph`	`getActiveGraph()`
`protected <T> String`	`getClassName(Class<T> elementClass)`
`ORecordConflictStrategy`	`getConflictStrategy()`
`protected ODatabaseDocumentTx`	`getDatabase()`
`protected static ODocument`	`getDocument(OIdentifiable id, boolean forceReload)`
`OrientEdge`	`getEdge(Object id)` Returns a edge by an ID.
`OrientEdgeType`	`getEdgeBaseType()` Returns the E persistent class as OrientEdgeType instance.
`static void`	`getEdgeClassNames(OrientBaseGraph graph, String... iLabels)` (Internal) Returns the case sensitive edge class names.
`protected OrientEdge`	`getEdgeInstance(OIdentifiable id)`
`protected OrientEdge`	`getEdgeInstance(OIdentifiable from, OIdentifiable to, String label)`
`protected OrientEdge`	`getEdgeInstance(String className, Object... fields)`
`Iterable<com.tinkerpop.blueprints.Edge>`	`getEdges()` Returns all the edges in Graph.
`Iterable<com.tinkerpop.blueprints.Edge>`	`getEdges(boolean iPolymorphic)` Get all the Edges in Graph specifying if consider or not sub-classes of E.
`Iterable<com.tinkerpop.blueprints.Edge>`	`getEdges(String iKey, Object iValue)` Get all the Edges in Graph filtering by field name and value.
`Iterable<com.tinkerpop.blueprints.Edge>`	`getEdgesOfClass(String iClassName)` Get all the Edges in Graph of a specific edge class and all sub-classes.
`Iterable<com.tinkerpop.blueprints.Edge>`	`getEdgesOfClass(String iClassName, boolean iPolymorphic)` Get all the Edges in Graph of a specific edges class and all sub-classes only if iPolymorphic is true.
`OrientEdgeType`	`getEdgeType(String iTypeName)` Returns the persistent class for type iTypeName as OrientEdgeType instance.
`OrientElement`	`getElement(Object id)` Returns a graph element, vertex or edge, starting from an ID.
`<T extends com.tinkerpop.blueprints.Element> com.tinkerpop.blueprints.Index<T>`	`getIndex(String indexName, Class<T> indexClass)` Returns an index by name and class
`<T extends com.tinkerpop.blueprints.Element> Set<String>`	`getIndexedKeys(Class<T> elementClass)` Returns the indexed properties.
`<T extends com.tinkerpop.blueprints.Element> Set<String>`	`getIndexedKeys(Class<T> elementClass, boolean includeClassNames)` Returns the indexed properties.
`Iterable<com.tinkerpop.blueprints.Index<? extends com.tinkerpop.blueprints.Element>>`	`getIndices()` Returns all the indices.
`OIntent`	`getIntent()`
`Map<String,Object>`	`getProperties()`
`protected Object`	`getProperty(String iName)`
`ODatabaseDocumentTx`	`getRawGraph()` Returns the underlying Database instance as ODatabaseDocumentTx instance.
`OrientVertex`	`getVertex(Object id)` Returns a vertex by an ID.
`OrientVertexType`	`getVertexBaseType()` Returns the V persistent class as OrientVertexType instance.
`com.tinkerpop.blueprints.Vertex`	`getVertexByKey(String iKey, Object iValue)` Deprecated.
`protected OrientVertex`	`getVertexInstance(OIdentifiable id)`
`protected OrientVertex`	`getVertexInstance(String className, Object... fields)`
`OrientVertexType`	`getVertexType(String iTypeName)` Returns the persistent class for type iTypeName as OrientVertexType instance.
`Iterable<com.tinkerpop.blueprints.Vertex>`	`getVertices()` Get all the Vertices in Graph.
`Iterable<com.tinkerpop.blueprints.Vertex>`	`getVertices(boolean iPolymorphic)` Get all the Vertices in Graph specifying if consider or not sub-classes of V.
`Iterable<com.tinkerpop.blueprints.Vertex>`	`getVertices(String iKey, Object iValue)` Get all the Vertices in Graph filtering by field name and value.
`Iterable<com.tinkerpop.blueprints.Vertex>`	`getVertices(String label, String[] iKey, Object[] iValue)` Get all the Vertices in Graph filtering by field name and value.
`Iterable<com.tinkerpop.blueprints.Vertex>`	`getVerticesOfClass(String iClassName)` Get all the Vertices in Graph of a specific vertex class and all sub-classes.
`Iterable<com.tinkerpop.blueprints.Vertex>`	`getVerticesOfClass(String iClassName, boolean iPolymorphic)` Get all the Vertices in Graph of a specific vertex class and all sub-classes only if iPolymorphic is true.
`boolean`	`isClosed()` Checks if the Graph has been closed.
`void`	`makeActive()`
`void`	`onStorageRecover()`
`com.tinkerpop.blueprints.GraphQuery`	`query()` Returns a GraphQuery object to execute queries against the Graph.
`void`	`removeEdge(com.tinkerpop.blueprints.Edge edge)` Removes an edge from the Graph.
`protected static void`	`removeEdges(OrientBaseGraph graph, ODocument iVertex, String iFieldName, OIdentifiable iVertexToRemove, boolean iAlsoInverse, boolean useVertexFieldsForEdgeLabels, boolean autoScaleEdgeType, boolean forceReload)` (Internal only)
`void`	`removeVertex(com.tinkerpop.blueprints.Vertex vertex)` Removes a vertex from the Graph.
`OrientBaseGraph`	`reuse(ODatabaseDocumentTx iDatabase)` Reuses the underlying database avoiding to create and open it every time.
`void`	`rollback()` Rollbacks the current active transaction.
`protected void`	`saveIndexConfiguration()`
`OrientBaseGraph`	`setConflictStrategy(ORecordConflictStrategy iResolver)`
`OrientBaseGraph`	`setConflictStrategy(String iStrategyName)`
`protected void`	`setCurrentGraphInThreadLocal()`
`protected Object`	`setProperty(String iName, Object iValue)`
`void`	`shutdown()` Closes the Graph.
`void`	`shutdown(boolean closeDb)` Closes the Graph.
`void`	`shutdown(boolean closeDb, boolean commitTx)` Closes the Graph.
`String`	`toString()` Returns the Graph URL.
`OTraverse`	`traverse()` Returns a OTraverse object to start traversing the graph.

Methods inherited from class com.tinkerpop.blueprints.impls.orient.OrientConfigurableGraph
getConnectionStrategy, getEdgeContainerEmbedded2TreeThreshold, getEdgeContainerTree2EmbeddedThreshold, getMaxRetries, getThreadMode, init, isAutoScaleEdgeType, isAutoStartTx, isKeepInMemoryReferences, isRequireTransaction, isSaveOriginalIds, isStandardElementConstraints, isStandardExceptions, isTxRequiredForSQLGraphOperations, isUseClassForEdgeLabel, isUseClassForVertexLabel, isUseLightweightEdges, isUseVertexFieldsForEdgeLabels, isWarnOnForceClosingTx, setAutoScaleEdgeType, setAutoStartTx, setConnectionStrategy, setEdgeContainerEmbedded2TreeThreshold, setEdgeContainerTree2EmbeddedThreshold, setKeepInMemoryReferences, setMaxRetries, setRequireTransaction, setSaveOriginalIds, setStandardElementConstraints, setStandardExceptions, setThreadMode, setTxRequiredForSQLGraphOperations, setUseClassForEdgeLabel, setUseClassForVertexLabel, setUseLightweightEdges, setUseLog, setUseVertexFieldsForEdgeLabels, setWarnOnForceClosingTx

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface com.tinkerpop.blueprints.Graph
getFeatures

Field Detail

CONNECTION_OUT

public static final String CONNECTION_OUT

See Also:: Constant Field Values

CONNECTION_IN

public static final String CONNECTION_IN

See Also:: Constant Field Values

CLASS_PREFIX

public static final String CLASS_PREFIX

See Also:: Constant Field Values

CLUSTER_PREFIX

public static final String CLUSTER_PREFIX

See Also:: Constant Field Values

ADMIN
```
public static final String ADMIN
```
See Also:

Constant Field Values

database
```
protected ODatabaseDocumentTx database
```

Constructor Detail

OrientBaseGraph

public OrientBaseGraph(ODatabaseDocumentTx iDatabase,
                       String iUserName,
                       String iUserPassword,
                       OrientConfigurableGraph.Settings iConfiguration)

Constructs a new object using an existent database instance.

Parameters:: iDatabase - Underlying database object to attach

OrientBaseGraph

public OrientBaseGraph(OPartitionedDatabasePool pool)

OrientBaseGraph

public OrientBaseGraph(OPartitionedDatabasePool pool,
                       OrientConfigurableGraph.Settings iConfiguration)

OrientBaseGraph
```
public OrientBaseGraph(String url)
```

OrientBaseGraph

public OrientBaseGraph(String url,
                       String username,
                       String password)

OrientBaseGraph

public OrientBaseGraph(org.apache.commons.configuration.Configuration configuration)

Builds a OrientGraph instance passing a configuration. Supported configuration settings are:

Name	Description	Default value
blueprints.orientdb.url	Database URL	-
blueprints.orientdb.username	User name	admin
blueprints.orientdb.password	User password	admin
blueprints.orientdb.saveOriginalIds	Saves the original element IDs by using the property origId. This could be useful on import of graph to preserve original ids	false
blueprints.orientdb.keepInMemoryReferences	Avoid to keep records in memory but only RIDs	false
blueprints.orientdb.useCustomClassesForEdges	Use Edge's label as OrientDB class. If doesn't exist create it under the hood	true
blueprints.orientdb.useCustomClassesForVertex	Use Vertex's label as OrientDB class. If doesn't exist create it under the hood	true
blueprints.orientdb.useVertexFieldsForEdgeLabels	Store the edge relationships in vertex by using the Edge's class. This allow to use multiple fields and make faster traversal by edge's label (class)	true
blueprints.orientdb.lightweightEdges	Uses lightweight edges. This avoid to create a physical document per edge. Documents are created only when they have properties	true
blueprints.orientdb.autoScaleEdgeType	Set auto scale of edge type. True means one edge is managed as LINK, 2 or more are managed with a LINKBAG	false
blueprints.orientdb.edgeContainerEmbedded2TreeThreshold	Changes the minimum number of edges for edge containers to transform the underlying structure from embedded to tree. Use -1 to disable transformation	-1
blueprints.orientdb.edgeContainerTree2EmbeddedThreshold	Changes the minimum number of edges for edge containers to transform the underlying structure from tree to embedded. Use -1 to disable transformation	-1

Parameters:: configuration - of graph

Method Detail
- getActiveGraph
```
public static OrientBaseGraph getActiveGraph()
```
- clearInitStack
```
public static void clearInitStack()
```
  Internal use only.
- onStorageRecover
```
public void onStorageRecover()
```
  Specified by:

  onStorageRecover in interface OStorageRecoverListener
- encodeClassNames
```
public static void encodeClassNames(String... iLabels)
```
  (Internal)
- getEdgeClassNames
```
public static void getEdgeClassNames(OrientBaseGraph graph,
                                     String... iLabels)
```
  (Internal) Returns the case sensitive edge class names.
- encodeClassName
```
public static String encodeClassName(String iClassName)
```
  (Internal)
- decodeClassName
```
public static String decodeClassName(String iClassName)
```
  (Internal)
- makeActive
```
public void makeActive()
```
- configure
```
public OrientBaseGraph configure(OrientConfigurableGraph.Settings iSetting)
```
  (Blueprints Extension) Configure the Graph instance.

  Parameters:

  iSetting - Settings object containing all the settings
- drop
```
public void drop()
```
  (Blueprints Extension) Drops the database

  Specified by:

  drop in interface OrientExtendedGraph
- createIndex
```
public <T extends com.tinkerpop.blueprints.Element> com.tinkerpop.blueprints.Index<T> createIndex(String indexName,
                                                                                                  Class<T> indexClass,
                                                                                                  com.tinkerpop.blueprints.Parameter... indexParameters)
```
  Specified by:

  createIndex in interface com.tinkerpop.blueprints.IndexableGraph
- getIndex
```
public <T extends com.tinkerpop.blueprints.Element> com.tinkerpop.blueprints.Index<T> getIndex(String indexName,
                                                                                               Class<T> indexClass)
```
  Returns an index by name and class

  Specified by:

  getIndex in interface com.tinkerpop.blueprints.IndexableGraph

  Parameters:

  indexName - Index name

  indexClass - Class as one or subclass of Vertex.class and Edge.class

  Returns:

  Index instance
- getIndices
```
public Iterable<com.tinkerpop.blueprints.Index<? extends com.tinkerpop.blueprints.Element>> getIndices()
```
  Returns all the indices.

  Specified by:

  getIndices in interface com.tinkerpop.blueprints.IndexableGraph

  Returns:

  Iterable of Index instances
- dropIndex
```
public void dropIndex(String indexName)
```
  Drops an index by name.

  Specified by:

  dropIndex in interface com.tinkerpop.blueprints.IndexableGraph

  Parameters:

  indexName - Index name
- addVertex
```
public OrientVertex addVertex(Object id)
```
  Creates a new unconnected vertex with no fields in the Graph.

  Specified by:

  addVertex in interface com.tinkerpop.blueprints.Graph

  Parameters:

  id - Optional, can contains the Vertex's class name by prefixing with "class:"

  Returns:

  The new OrientVertex created
- getConflictStrategy
```
public ORecordConflictStrategy getConflictStrategy()
```
  Specified by:

  getConflictStrategy in interface OrientExtendedGraph
- setConflictStrategy
```
public OrientBaseGraph setConflictStrategy(String iStrategyName)
```
  Specified by:

  setConflictStrategy in interface OrientExtendedGraph
- setConflictStrategy
```
public OrientBaseGraph setConflictStrategy(ORecordConflictStrategy iResolver)
```
  Specified by:

  setConflictStrategy in interface OrientExtendedGraph
- addVertex
```
public OrientVertex addVertex(Object id,
                              Object... prop)
```
  (Blueprints Extension) Creates a new unconnected vertex in the Graph setting the initial field values.

  Specified by:

  addVertex in interface OrientExtendedGraph

  Parameters:

  id - Optional, can contains the Vertex's class name by prefixing with "class:"

  prop - Fields must be a odd pairs of key/value or a single object as Map containing entries as key/value pairs

  Returns:

  The new OrientVertex created
- addVertex
```
public OrientVertex addVertex(String iClassName,
                              String iClusterName)
```
  (Blueprints Extension) Creates a new unconnected vertex with no fields of specific class in a cluster in the Graph.

  Parameters:

  iClassName - Vertex class name

  iClusterName - Vertex cluster name

  Returns:

  New vertex created
- addTemporaryVertex
```
public OrientVertex addTemporaryVertex(String iClassName,
                                       Object... prop)
```
  (Blueprints Extension) Creates a temporary vertex setting the initial field values. The vertex is not saved and the transaction is not started.

  Specified by:

  addTemporaryVertex in interface OrientExtendedGraph

  Parameters:

  iClassName - Vertex's class name

  prop - Fields must be a odd pairs of key/value or a single object as Map containing entries as key/value pairs

  Returns:

  added vertex
- addEdge
```
public OrientEdge addEdge(Object id,
                          com.tinkerpop.blueprints.Vertex outVertex,
                          com.tinkerpop.blueprints.Vertex inVertex,
                          String label)
```
  Creates an edge between a source Vertex and a destination Vertex setting label as Edge's label.

  Specified by:

  addEdge in interface com.tinkerpop.blueprints.Graph

  Parameters:

  id - Optional, can contains the Edge's class name by prefixing with "class:"

  outVertex - Source vertex

  inVertex - Destination vertex

  label - Edge's label
- getVertex
```
public OrientVertex getVertex(Object id)
```
  Returns a vertex by an ID.

  Specified by:

  getVertex in interface com.tinkerpop.blueprints.Graph

  Parameters:

  id - Can by a String, ODocument or an OIdentifiable object.
- declareIntent
```
public void declareIntent(OIntent iIntent)
```
  Description copied from interface: OrientExtendedGraph

  Declare an intent.

  Specified by:

  declareIntent in interface OrientExtendedGraph

  Specified by:

  declareIntent in class OrientConfigurableGraph
- removeVertex
```
public void removeVertex(com.tinkerpop.blueprints.Vertex vertex)
```
  Removes a vertex from the Graph. All the edges connected to the Vertex are automatically removed.

  Specified by:

  removeVertex in interface com.tinkerpop.blueprints.Graph

  Parameters:

  vertex - Vertex to remove
- getVertices
```
public Iterable<com.tinkerpop.blueprints.Vertex> getVertices()
```
  Get all the Vertices in Graph.

  Specified by:

  getVertices in interface com.tinkerpop.blueprints.Graph

  Returns:

  Vertices as Iterable
- getVertices
```
public Iterable<com.tinkerpop.blueprints.Vertex> getVertices(boolean iPolymorphic)
```
  Get all the Vertices in Graph specifying if consider or not sub-classes of V.

  Parameters:

  iPolymorphic - If true then get all the vertices of any sub-class

  Returns:

  Vertices as Iterable
- getVerticesOfClass
```
public Iterable<com.tinkerpop.blueprints.Vertex> getVerticesOfClass(String iClassName)
```
  Get all the Vertices in Graph of a specific vertex class and all sub-classes.

  Parameters:

  iClassName - Vertex class name to filter

  Returns:

  Vertices as Iterable
- getVerticesOfClass
```
public Iterable<com.tinkerpop.blueprints.Vertex> getVerticesOfClass(String iClassName,
                                                                    boolean iPolymorphic)
```
  Get all the Vertices in Graph of a specific vertex class and all sub-classes only if iPolymorphic is true.

  Parameters:

  iClassName - Vertex class name to filter

  iPolymorphic - If true consider also Vertex iClassName sub-classes

  Returns:

  Vertices as Iterable
- getVertices
```
public Iterable<com.tinkerpop.blueprints.Vertex> getVertices(String iKey,
                                                             Object iValue)
```
  Get all the Vertices in Graph filtering by field name and value. Example:Iterable resultset = getVertices("name", "Jay");

  Specified by:

  getVertices in interface com.tinkerpop.blueprints.Graph

  Parameters:

  iKey - Field name

  iValue - Field value

  Returns:

  Vertices as Iterable
- getVertexByKey
```
@Deprecated
public com.tinkerpop.blueprints.Vertex getVertexByKey(String iKey,
                                                                  Object iValue)
```
  Deprecated.

  Lookup for a vertex by id using an index.
  This API relies on Unique index (SBTREE/HASH) but is deprecated.
  Example: Vertex v = getVertexByKey("V.name", "name", "Jay");

  Parameters:

  iKey - Name of the indexed property

  iValue - Field value

  Returns:

  Vertex instance if found, otherwise null

  See Also:

  getVertices(String, Object)
- getVertices
```
public Iterable<com.tinkerpop.blueprints.Vertex> getVertices(String label,
                                                             String[] iKey,
                                                             Object[] iValue)
```
  Get all the Vertices in Graph filtering by field name and value. Example:Iterable resultset = getVertices("Person",new String[] {"name","surname"},new Object[] { "Sherlock" ,"Holmes"});

  Parameters:

  iKey - Fields name

  iValue - Fields value

  Returns:

  Vertices as Iterable
- getEdges
```
public Iterable<com.tinkerpop.blueprints.Edge> getEdges()
```
  Returns all the edges in Graph.

  Specified by:

  getEdges in interface com.tinkerpop.blueprints.Graph

  Returns:

  Edges as Iterable
- getEdges
```
public Iterable<com.tinkerpop.blueprints.Edge> getEdges(boolean iPolymorphic)
```
  Get all the Edges in Graph specifying if consider or not sub-classes of E.

  Parameters:

  iPolymorphic - If true then get all the edge of any sub-class

  Returns:

  Edges as Iterable
- getEdgesOfClass
```
public Iterable<com.tinkerpop.blueprints.Edge> getEdgesOfClass(String iClassName)
```
  Get all the Edges in Graph of a specific edge class and all sub-classes.

  Parameters:

  iClassName - Edge class name to filter

  Returns:

  Edges as Iterable
- getEdgesOfClass
```
public Iterable<com.tinkerpop.blueprints.Edge> getEdgesOfClass(String iClassName,
                                                               boolean iPolymorphic)
```
  Get all the Edges in Graph of a specific edges class and all sub-classes only if iPolymorphic is true.

  Parameters:

  iClassName - Edge class name to filter

  iPolymorphic - If true consider also iClassName Edge sub-classes

  Returns:

  Edges as Iterable
- getEdges
```
public Iterable<com.tinkerpop.blueprints.Edge> getEdges(String iKey,
                                                        Object iValue)
```
  Get all the Edges in Graph filtering by field name and value. Example:Iterable resultset = getEdges("name", "Jay");

  Specified by:

  getEdges in interface com.tinkerpop.blueprints.Graph

  Parameters:

  iKey - Field name

  iValue - Field value

  Returns:

  Edges as Iterable
- getEdge
```
public OrientEdge getEdge(Object id)
```
  Returns a edge by an ID.

  Specified by:

  getEdge in interface com.tinkerpop.blueprints.Graph

  Parameters:

  id - Can by a String, ODocument or an OIdentifiable object.
- removeEdge
```
public void removeEdge(com.tinkerpop.blueprints.Edge edge)
```
  Removes an edge from the Graph.

  Specified by:

  removeEdge in interface com.tinkerpop.blueprints.Graph

  Parameters:

  edge - Edge to remove
- reuse
```
public OrientBaseGraph reuse(ODatabaseDocumentTx iDatabase)
```
  Reuses the underlying database avoiding to create and open it every time.

  Parameters:

  iDatabase - Underlying database object
- isClosed
```
public boolean isClosed()
```
  Checks if the Graph has been closed.

  Returns:

  True if it is closed, otherwise false
- shutdown
```
public void shutdown()
```
  Closes the Graph. After closing the Graph cannot be used.

  Specified by:

  shutdown in interface com.tinkerpop.blueprints.Graph
- shutdown
```
public void shutdown(boolean closeDb)
```
  Closes the Graph. After closing the Graph cannot be used.
- shutdown
```
public void shutdown(boolean closeDb,
                     boolean commitTx)
```
  Closes the Graph. After closing the Graph cannot be used.
- toString
```
public String toString()
```
  Returns the Graph URL.

  Overrides:

  toString in class Object
- getRawGraph
```
public ODatabaseDocumentTx getRawGraph()
```
  Returns the underlying Database instance as ODatabaseDocumentTx instance.

  Specified by:

  getRawGraph in interface com.tinkerpop.blueprints.MetaGraph<ODatabaseDocumentTx>
- begin
```
public void begin()
```
  begins current transaction (if the graph is transactional)
- commit
```
public void commit()
```
  Commits the current active transaction.
- rollback
```
public void rollback()
```
  Rollbacks the current active transaction. All the pending changes are rollbacked.
- getVertexBaseType
```
public OrientVertexType getVertexBaseType()
```
  Returns the V persistent class as OrientVertexType instance.

  Specified by:

  getVertexBaseType in interface OrientExtendedGraph
- getVertexType
```
public OrientVertexType getVertexType(String iTypeName)
```
  Returns the persistent class for type iTypeName as OrientVertexType instance.

  Specified by:

  getVertexType in interface OrientExtendedGraph

  Parameters:

  iTypeName - Vertex class name
- createVertexType
```
public OrientVertexType createVertexType(String iClassName)
```
  Creates a new Vertex persistent class.

  Specified by:

  createVertexType in interface OrientExtendedGraph

  Parameters:

  iClassName - Vertex class name

  Returns:

  OrientVertexType instance representing the persistent class
- createVertexType
```
public OrientVertexType createVertexType(String iClassName,
                                         int clusters)
```
  Creates a new Vertex persistent class.

  Specified by:

  createVertexType in interface OrientExtendedGraph

  Parameters:

  iClassName - Vertex class name

  clusters - The number of clusters to create for the new class. By default the MINIMUMCLUSTERS database setting is used. In v2.2 and later, the number of clusters are proportioned to the amount of cores found on the machine

  Returns:

  OrientVertexType instance representing the persistent class
- createVertexType
```
public OrientVertexType createVertexType(String iClassName,
                                         String iSuperClassName)
```
  Creates a new Vertex persistent class specifying the super class.

  Specified by:

  createVertexType in interface OrientExtendedGraph

  Parameters:

  iClassName - Vertex class name

  iSuperClassName - Vertex class name to extend

  Returns:

  OrientVertexType instance representing the persistent class
- createVertexType
```
public OrientVertexType createVertexType(String iClassName,
                                         String iSuperClassName,
                                         int clusters)
```
  Creates a new Vertex persistent class specifying the super class.

  Specified by:

  createVertexType in interface OrientExtendedGraph

  Parameters:

  iClassName - Vertex class name

  iSuperClassName - Vertex class name to extend

  clusters - The number of clusters to create for the new class. By default the MINIMUMCLUSTERS database setting is used. In v2.2 and later, the number of clusters are proportioned to the amount of cores found on the machine

  Returns:

  OrientVertexType instance representing the persistent class
- createVertexType
```
public OrientVertexType createVertexType(String iClassName,
                                         OClass iSuperClass)
```
  Creates a new Vertex persistent class specifying the super class.

  Specified by:

  createVertexType in interface OrientExtendedGraph

  Parameters:

  iClassName - Vertex class name

  iSuperClass - OClass Vertex to extend

  Returns:

  OrientVertexType instance representing the persistent class
- createVertexType
```
public OrientVertexType createVertexType(String iClassName,
                                         OClass iSuperClass,
                                         int clusters)
```
  Creates a new Vertex persistent class specifying the super class.

  Specified by:

  createVertexType in interface OrientExtendedGraph

  Parameters:

  iClassName - Vertex class name

  iSuperClass - OClass Vertex to extend

  clusters - The number of clusters to create for the new class. By default the MINIMUMCLUSTERS database setting is used. In v2.2 and later, the number of clusters are proportioned to the amount of cores found on the machine

  Returns:

  OrientVertexType instance representing the persistent class
- dropVertexType
```
public void dropVertexType(String iTypeName)
```
  Drop a vertex class.

  Specified by:

  dropVertexType in interface OrientExtendedGraph

  Parameters:

  iTypeName - Vertex class name
- getEdgeBaseType
```
public OrientEdgeType getEdgeBaseType()
```
  Returns the E persistent class as OrientEdgeType instance.

  Specified by:

  getEdgeBaseType in interface OrientExtendedGraph
- getEdgeType
```
public OrientEdgeType getEdgeType(String iTypeName)
```
  Returns the persistent class for type iTypeName as OrientEdgeType instance.

  Specified by:

  getEdgeType in interface OrientExtendedGraph

  Parameters:

  iTypeName - Edge class name
- createEdgeType
```
public OrientEdgeType createEdgeType(String iClassName)
```
  Creates a new Edge persistent class.

  Specified by:

  createEdgeType in interface OrientExtendedGraph

  Parameters:

  iClassName - Edge class name

  Returns:

  OrientEdgeType instance representing the persistent class
- createEdgeType
```
public OrientEdgeType createEdgeType(String iClassName,
                                     int clusters)
```
  Creates a new Edge persistent class.

  Parameters:

  iClassName - Edge class name

  clusters - The number of clusters to create for the new class. By default the MINIMUMCLUSTERS database setting is used. In v2.2 and later, the number of clusters are proportioned to the amount of cores found on the machine

  Returns:

  OrientEdgeType instance representing the persistent class
- createEdgeType
```
public OrientEdgeType createEdgeType(String iClassName,
                                     String iSuperClassName)
```
  Creates a new Edge persistent class specifying the super class.

  Specified by:

  createEdgeType in interface OrientExtendedGraph

  Parameters:

  iClassName - Edge class name

  iSuperClassName - Edge class name to extend

  Returns:

  OrientEdgeType instance representing the persistent class
- createEdgeType
```
public OrientEdgeType createEdgeType(String iClassName,
                                     String iSuperClassName,
                                     int clusters)
```
  Creates a new Edge persistent class specifying the super class.

  Parameters:

  iClassName - Edge class name

  iSuperClassName - Edge class name to extend

  clusters - The number of clusters to create for the new class. By default the MINIMUMCLUSTERS database setting is used. In v2.2 and later, the number of clusters are proportioned to the amount of cores found on the machine

  Returns:

  OrientEdgeType instance representing the persistent class
- createEdgeType
```
public OrientEdgeType createEdgeType(String iClassName,
                                     OClass iSuperClass,
                                     int clusters)
```
  Creates a new Edge persistent class specifying the super class.

  Specified by:

  createEdgeType in interface OrientExtendedGraph

  Parameters:

  iClassName - Edge class name

  iSuperClass - OClass Edge to extend

  clusters - The number of clusters to create for the new class. By default the MINIMUMCLUSTERS database setting is used. In v2.2 and later, the number of clusters are proportioned to the amount of cores found on the machine

  Returns:

  OrientEdgeType instance representing the persistent class
- createEdgeType
```
public OrientEdgeType createEdgeType(String iClassName,
                                     OClass iSuperClass)
```
  Creates a new Edge persistent class specifying the super class.

  Specified by:

  createEdgeType in interface OrientExtendedGraph

  Parameters:

  iClassName - Edge class name

  iSuperClass - OClass Edge to extend

  Returns:

  OrientEdgeType instance representing the persistent class
- dropEdgeType
```
public void dropEdgeType(String iTypeName)
```
  Drops an edge class.

  Specified by:

  dropEdgeType in interface OrientExtendedGraph

  Parameters:

  iTypeName - Edge class name
- detach
```
public OrientElement detach(OrientElement iElement)
```
  Detaches a Graph Element to be used offline. All the changes will be committed on further @attach call.

  Specified by:

  detach in interface OrientExtendedGraph

  Parameters:

  iElement - Graph element to detach

  Returns:

  The detached element

  See Also:

  attach(OrientElement)
- attach
```
public OrientElement attach(OrientElement iElement)
```
  Attaches a previously detached Graph Element to the current Graph. All the pending changes will be committed.

  Specified by:

  attach in interface OrientExtendedGraph

  Parameters:

  iElement - Graph element to attach

  Returns:

  The attached element

  See Also:

  detach(OrientElement)
- getElement
```
public OrientElement getElement(Object id)
```
  Returns a graph element, vertex or edge, starting from an ID.

  Parameters:

  id - Can by a String, ODocument or an OIdentifiable object.

  Returns:

  OrientElement subclass such as OrientVertex or OrientEdge
- dropKeyIndex
```
public <T extends com.tinkerpop.blueprints.Element> void dropKeyIndex(String key,
                                                                      Class<T> elementClass)
```
  Drops the index against a field name.

  Specified by:

  dropKeyIndex in interface com.tinkerpop.blueprints.KeyIndexableGraph

  Parameters:

  key - Field name

  elementClass - Element class as instances of Vertex and Edge
- createKeyIndex
```
public <T extends com.tinkerpop.blueprints.Element> void createKeyIndex(String key,
                                                                        Class<T> elementClass,
                                                                        com.tinkerpop.blueprints.Parameter... indexParameters)
```
  Creates an automatic indexing structure for indexing provided key for element class.
  Specified by:

  createKeyIndex in interface com.tinkerpop.blueprints.KeyIndexableGraph

  Type Parameters:

  T - the element class specification

  Parameters:

  key - the key to create the index for

  elementClass - the element class that the index is for
  indexParameters - a collection of parameters for the underlying index implementation:
  - "type" is the index type between the supported types (UNIQUE, NOTUNIQUE, FULLTEXT). The default type is NOT_UNIQUE
  - "class" is the class to index when it's a custom type derived by Vertex (V) or Edge (E)
  - "keytype" to use a key type different by OType.STRING,
- getIndexedKeys
```
public <T extends com.tinkerpop.blueprints.Element> Set<String> getIndexedKeys(Class<T> elementClass)
```
  Returns the indexed properties.

  Specified by:

  getIndexedKeys in interface com.tinkerpop.blueprints.KeyIndexableGraph

  Parameters:

  elementClass - the element class that the index is for

  Returns:

  Set of String containing the indexed properties
- getIndexedKeys
```
public <T extends com.tinkerpop.blueprints.Element> Set<String> getIndexedKeys(Class<T> elementClass,
                                                                               boolean includeClassNames)
```
  Returns the indexed properties.

  Parameters:

  elementClass - the element class that the index is for

  includeClassNames - If true includes also the class name as prefix of fields

  Returns:

  Set of String containing the indexed properties
- query
```
public com.tinkerpop.blueprints.GraphQuery query()
```
  Returns a GraphQuery object to execute queries against the Graph.

  Specified by:

  query in interface com.tinkerpop.blueprints.Graph

  Specified by:

  query in interface OrientExtendedGraph

  Returns:

  new GraphQuery instance
- traverse
```
public OTraverse traverse()
```
  Returns a OTraverse object to start traversing the graph.

  Specified by:

  traverse in interface OrientExtendedGraph
- command
```
public OCommandRequest command(OCommandRequest iCommand)
```
  Executes commands against the graph. Commands are executed outside transaction.

  Specified by:

  command in interface OrientExtendedGraph

  Parameters:

  iCommand - Command request between SQL, GREMLIN and SCRIPT commands
- countVertices
```
public long countVertices()
```
  Counts the vertices in graph.

  Specified by:

  countVertices in interface OrientExtendedGraph

  Returns:

  Long as number of total vertices
- countVertices
```
public long countVertices(String iClassName)
```
  Counts the vertices in graph of a particular class.

  Specified by:

  countVertices in interface OrientExtendedGraph

  Returns:

  Long as number of total vertices
- countEdges
```
public long countEdges()
```
  Counts the edges in graph. Edge counting works only if useLightweightEdges is false.

  Specified by:

  countEdges in interface OrientExtendedGraph

  Returns:

  Long as number of total edges
- countEdges
```
public long countEdges(String iClassName)
```
  Counts the edges in graph of a particular class. Edge counting works only if useLightweightEdges is false.

  Specified by:

  countEdges in interface OrientExtendedGraph

  Returns:

  Long as number of total edges
- executeOutsideTx
```
public <RET> RET executeOutsideTx(OCallable<RET,OrientBaseGraph> iCallable,
                                  String... iOperationStrings)
                           throws RuntimeException
```
  Throws:

  RuntimeException
- autoStartTransaction
```
protected void autoStartTransaction()
```
- saveIndexConfiguration
```
protected void saveIndexConfiguration()
```
- getClassName
```
protected <T> String getClassName(Class<T> elementClass)
```
- convertKey
```
protected Object convertKey(OIndex<?> idx,
                            Object iValue)
```
- convertKeys
```
protected Object[] convertKeys(OIndex<?> idx,
                               Object[] iValue)
```
- setCurrentGraphInThreadLocal
```
protected void setCurrentGraphInThreadLocal()
```
- getDatabase
```
protected ODatabaseDocumentTx getDatabase()
```
- removeEdges
```
protected static void removeEdges(OrientBaseGraph graph,
                                  ODocument iVertex,
                                  String iFieldName,
                                  OIdentifiable iVertexToRemove,
                                  boolean iAlsoInverse,
                                  boolean useVertexFieldsForEdgeLabels,
                                  boolean autoScaleEdgeType,
                                  boolean forceReload)
```
  (Internal only)
- getDocument
```
protected static ODocument getDocument(OIdentifiable id,
                                       boolean forceReload)
```
- deleteEdgeIfAny
```
protected static void deleteEdgeIfAny(OIdentifiable iRecord,
                                      boolean forceReload)
```
  (Internal only)
- getIntent
```
public OIntent getIntent()
```
- getVertexInstance
```
protected OrientVertex getVertexInstance(OIdentifiable id)
```
- getVertexInstance
```
protected OrientVertex getVertexInstance(String className,
                                         Object... fields)
```
- getEdgeInstance
```
protected OrientEdge getEdgeInstance(OIdentifiable id)
```
- getEdgeInstance
```
protected OrientEdge getEdgeInstance(String className,
                                     Object... fields)
```
- getEdgeInstance
```
protected OrientEdge getEdgeInstance(OIdentifiable from,
                                     OIdentifiable to,
                                     String label)
```
- setProperty
```
protected Object setProperty(String iName,
                             Object iValue)
```
  Specified by:

  setProperty in class OrientConfigurableGraph
- getProperty
```
protected Object getProperty(String iName)
```
  Specified by:

  getProperty in class OrientConfigurableGraph
- getProperties
```
public Map<String,Object> getProperties()
```
  Specified by:

  getProperties in class OrientConfigurableGraph

Class OrientBaseGraph

Nested Class Summary

Nested classes/interfaces inherited from class com.tinkerpop.blueprints.impls.orient.OrientConfigurableGraph

Field Summary

Fields inherited from class com.tinkerpop.blueprints.impls.orient.OrientConfigurableGraph

Constructor Summary

Method Summary

Methods inherited from class com.tinkerpop.blueprints.impls.orient.OrientConfigurableGraph

Methods inherited from class java.lang.Object

Methods inherited from interface com.tinkerpop.blueprints.Graph

Field Detail

CONNECTION_OUT

CONNECTION_IN

CLASS_PREFIX

CLUSTER_PREFIX

ADMIN

database

Constructor Detail

OrientBaseGraph

OrientBaseGraph

OrientBaseGraph

OrientBaseGraph

OrientBaseGraph

OrientBaseGraph

Method Detail

getActiveGraph

clearInitStack

onStorageRecover

encodeClassNames

getEdgeClassNames

encodeClassName

decodeClassName

makeActive

configure

drop

createIndex

getIndex

getIndices

dropIndex

addVertex

getConflictStrategy

setConflictStrategy

setConflictStrategy

addVertex

addVertex

addTemporaryVertex

addEdge

getVertex

declareIntent

removeVertex

getVertices

getVertices

getVerticesOfClass

getVerticesOfClass

getVertices

getVertexByKey

getVertices

getEdges

getEdges

getEdgesOfClass

getEdgesOfClass

getEdges

getEdge

removeEdge

reuse

isClosed

shutdown

shutdown

shutdown

toString

getRawGraph

begin

commit

rollback

getVertexBaseType

getVertexType

createVertexType

createVertexType

createVertexType

createVertexType
